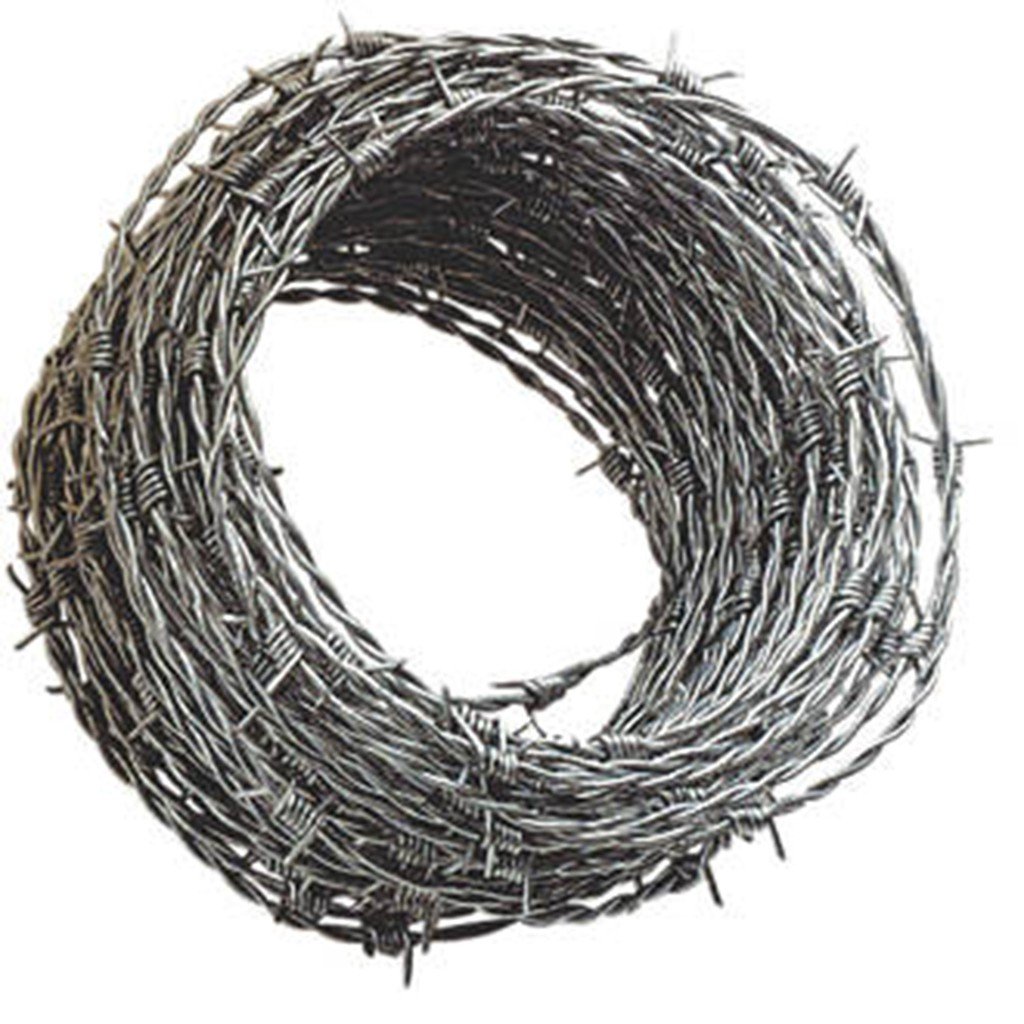

Galvanized Barbed Wire

Wire Diamter

1.6mm, 1.7mm, 1.8mm, 2.0mm, 2.5mm

Length

100m, 200m, 300m.

Wire Distance

4" ,5", 6"

Item No.

bar-001

Brand

Orange wire

Galvanized Barbed Wire

Description:

Barbed wire is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of fence or in rows as an independent barrier. To prevent corrosion, barbed wire has a zinc coating. The barbed wire consists of barb wire and line wire. The wire diameter of line wire is larger. The line wire can have one wire or two wires. The barb wires are braided with a system of constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharpened spikes are protective elements of barbed wire.

Hot dipped galvanized barbed wire specification:

  • Zinc surface density: (the more zinc, the corrosion resistance is stronger.)
  • Horizontal line wire/barb wire (g/m2): 80/60, 114/85, 175/147, 260/240.

Galvanized single strand barbed wire size:

  • Made of l line wire with 4 spikes, spaced at a distance of 70 mm – 120 mm.
  • Horizontal line wire diameter 2.8 mm.
  • Barb wire diameter 2.0 mm.
  • Number of spikes 4.
  • Packed in coils: 25-45 kg/coil, or 100 m, 500 m/coil.

Galvanized barbed wire with double strand size:

  • Made of 2 twisted line wires with 4 spikes, spikes spaced at a distance of 75 mm – 100 mm.
  • Horizontal wire barbed wire diameter 2.5 mm/1.70 mm.
  • Spikes wire diameter 2.0 mm/1.50 mm.
  • Strength of horizontal line wire: min. 1150 N/mm2 .
  • Strength of barb wire: 700/900 N/mm2.
  • Stranded wire breaking load: min. 4230 N.
  • Packed in coils: 20-50 kg/coil or 50 m – 400 m/coil.



Table: Standard Sizes and Constructions for Barbed Wire
Design NumberSize, Steel Wire GageDiameter of Coated
Wire, in. (mm)
Number of Barb
Points
Spacing of Barbs,
in. (mm)
Diameter of Barbs, Steel
Wire Gage
Shape of Barbs
12-4-3-14R12.50.099 (2.51)43 (76)14round
12-4-3-12R12.50.099 (2.51)43 (76)12round
12-2-4-12F12.50.099 (2.51)24 (102)12.5flat
12-2-4-13F12.50.099 (2.51)24 (102)13flat
12-2-4-14R12.50.099 (2.51)24 (102)14round
12-2-5-12F12.50.099 (2.51)25 (127)12.5flat
12-4-5-14R12.50.099 (2.51)25 (127)14round
12-4-5-14H12.50.099 (2.51)45 (127)14half-round
12-4-5-14R12.50.099 (2.51)45 (127)14round
13-2-4-14R13.50.086 (2.18)24 (102)14round
13-4-5-14R13.50.086 (2.18)45 (127)14round
14-2-4-14F140.080 (2.03)24 (102)14flat
14-2-5-14F140.080 (2.03)25 (127)14flat
14-4-3-14F140.080 (2.03)43 (76)14flat
14-4-5-14F140.080 (2.03)45 (127)14flat
14-2-5-14R140.080 (2.03)25 (127)14round
15-4-5-14R140.080 (2.03)45 (127)14round
15-2-5-13F15.50.067 (1.70)25 (127)13.75flat
15-2-5-14R15.50.067 (1.70)25 (127)14round
15-4-5-16R15.50.067 (1.70)45 (127)16.5round
15-4-3-16R15.50.067 (1.70)43 (76)16.5round
